Single & Double With Inline Body

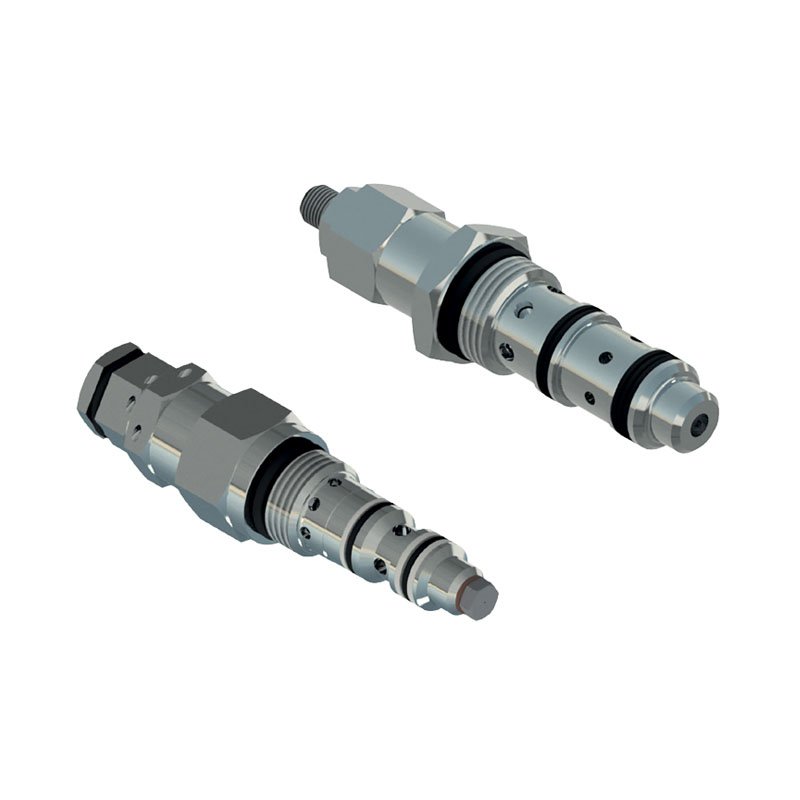

Cartridge pressure reducing valve
SAE-08 cavity, for flow rates up to 20 litres/min.
Maximum working pressure 350 bar.

Suitable for differentiating 2 different stages of working pressure within a circuit:
– a main stage at nominal pressure
– a “reduced” pressure secondary stage, adjustable through the adjustment screw of the valve itself.
Furthermore, the “reduced” pressure is kept constant and protected from overloads thanks to the relief valve function.
